CN Traveller Middle East

United Arab Emirates (National)

  • Specification: MagazineAds_1v4 (by GWG)
  • PDF Standard: PDF/X-1a:2001
  • Crop Marks: Required for ads with bleed
    • Binding: Perfect binding

Convert to CMYK using these settings:

Display Fixed Sizes

Live matter & type safety: Allow 10mm from trim and 13mm from bleed

Double gutter image: it is the file creator’s responsibility to include double gutter image allowance, if required. Neither Condé Nast nor our repro house nor our printer will apply double gutter image. As a recommendation only: no type should appear within 7mm either side of the gutter on a spread. If other important elements run through the gutter on a spread the middle of the spread should have a duplication of 7mm contained within the trim areas.

  • Full Page

    Trim: W 213mm x H 276mm

    Bleed: W 219mm x H 282mm 3mm all round

    Type: W 193mm x H 256mm

Show each page
  • Double Page Spread

    Trim: W 426mm x H 276mm

    Bleed: W 432mm x H 282mm 3mm all round

    Type: W 406mm x H 256mm

  • Each page must be supplied as a separate file
  • Double Page Spread Left Page

    Trim: W 213mm x H 276mm

    Bleed: W 219mm x H 282mm 3mm all round

    Type: W 193mm x H 256mm

  • Double Page Spread Right Page

    Trim: W 213mm x H 276mm

    Bleed: W 219mm x H 282mm 3mm all round

    Type: W 193mm x H 256mm

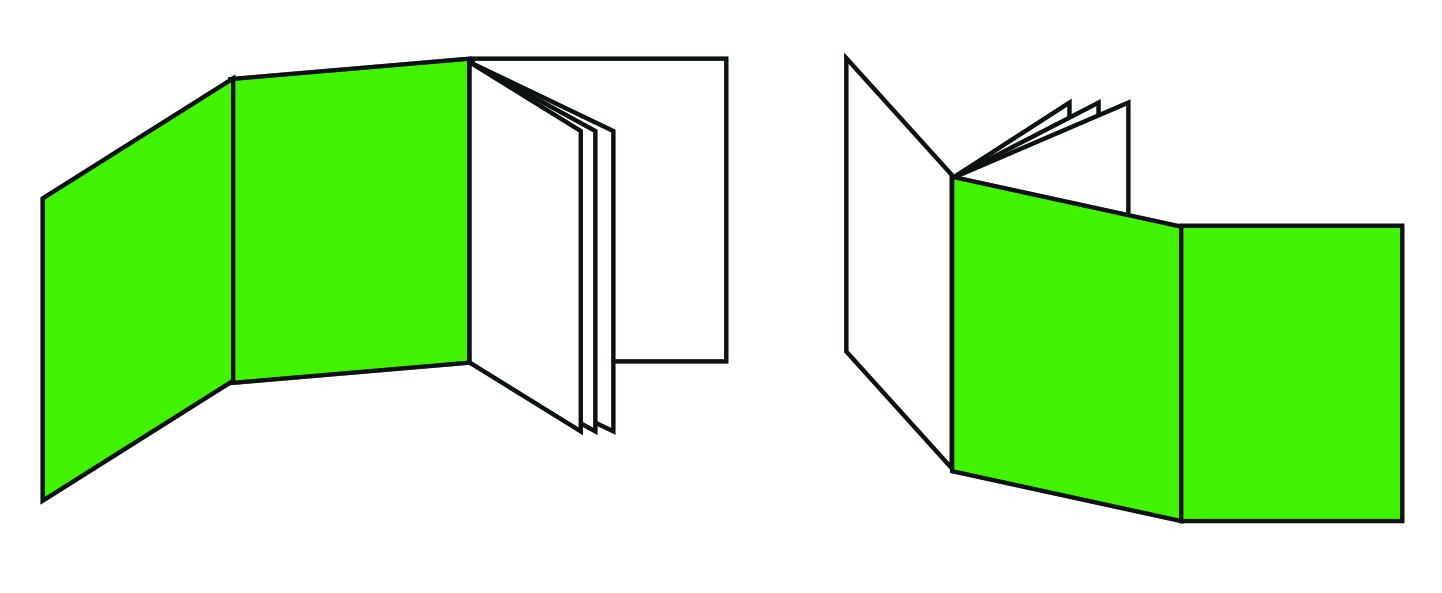

Gatefold Cover

Live matter & type safety: Allow 10mm from trim and 13mm from bleed

Double gutter image: it is the file creator’s responsibility to include double gutter image allowance, if required. Neither Condé Nast nor our repro house nor our printer will apply double gutter image. As a recommendation only: no type should appear within 7mm either side of the gutter on a spread. If other important elements run through the gutter on a spread the middle of the spread should have a duplication of 7mm contained within the trim areas.

  • PDF 1 - Front of Cover Flap

    Trim: W 200mm x H 276mm

    Bleed: W 206mm x H 282mm 3mm all round

    Type: W 180mm x H 256mm

  • PDF 2 - Back of Cover Flap & IFC

    Trim: W 410mm x H 276mm

    Bleed: W 416mm x H 282mm 3mm all round

    Type: W 390mm x H 256mm

  • Must be supplied as one file
  • PDF 3 - Single Page

    Trim: W 213mm x H 276mm

    Bleed: W 219mm x H 282mm 3mm all round

    Type: W 193mm x H 256mm

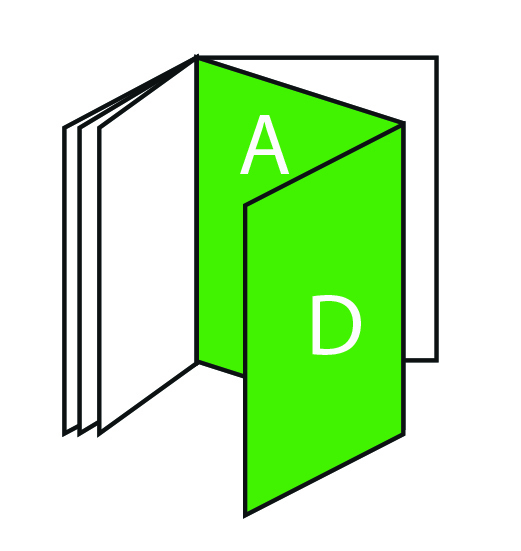

8pp Internal Right Hand Rollfold

8pp Internal Right Hand Rollfold
Please ensure that two files are supplied.
The measurements for each file will be as below:
FRONT – 210/200/199/198mm x 276mm
BACK – 198/199/200/210mm x 276mm

Live matter & type safety: Allow 10mm from trim and 13mm from bleed

  • 8pp Internal Right Hand Rollfold (FRONT)

    Trim: W 807mm x H 276mm

    Bleed: W 813mm x H 282mm 3mm all round

    Type: W 787mm x H 256mm

  • Must be supplied as one file
  • 8pp Internal Right Hand Rollfold (BACK)

    Trim: W 807mm x H 276mm

    Bleed: W 813mm x H 282mm 3mm all round

    Type: W 787mm x H 256mm

  • Must be supplied as one file

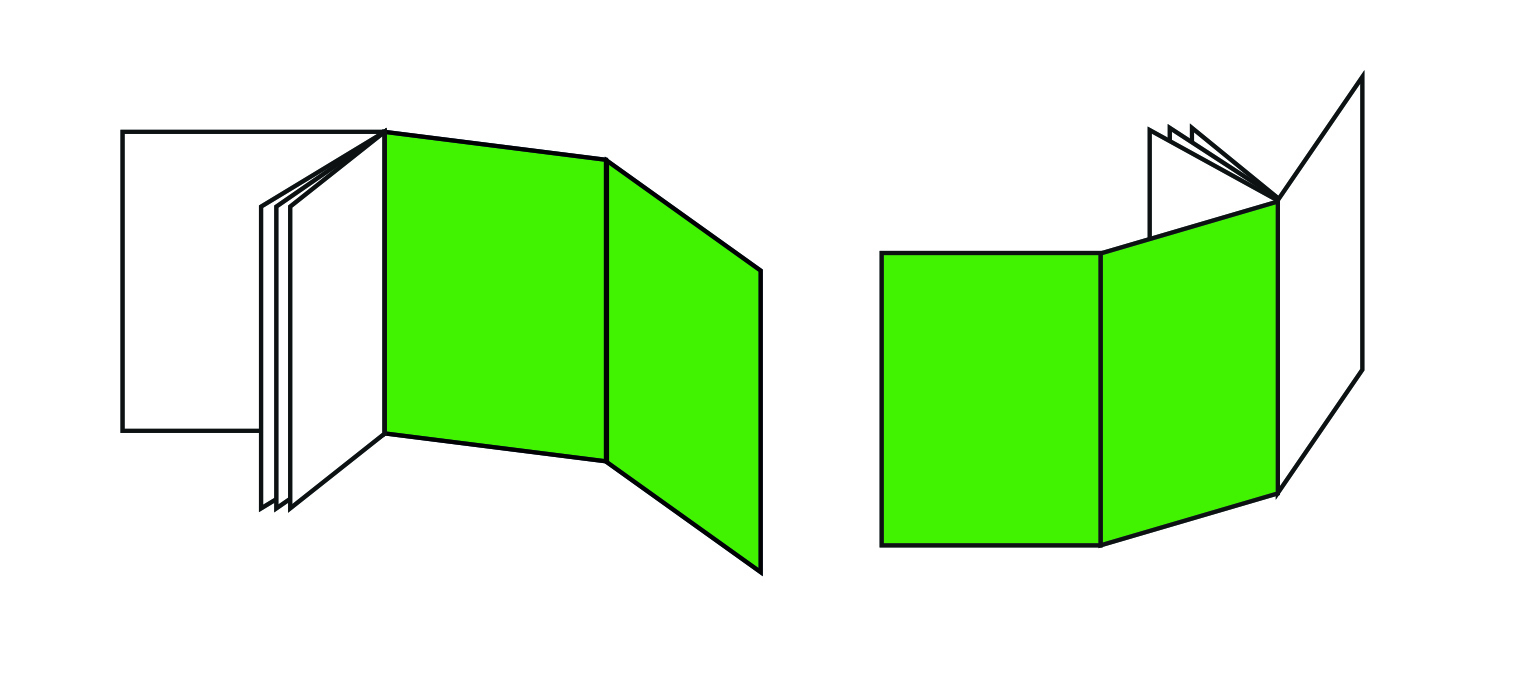

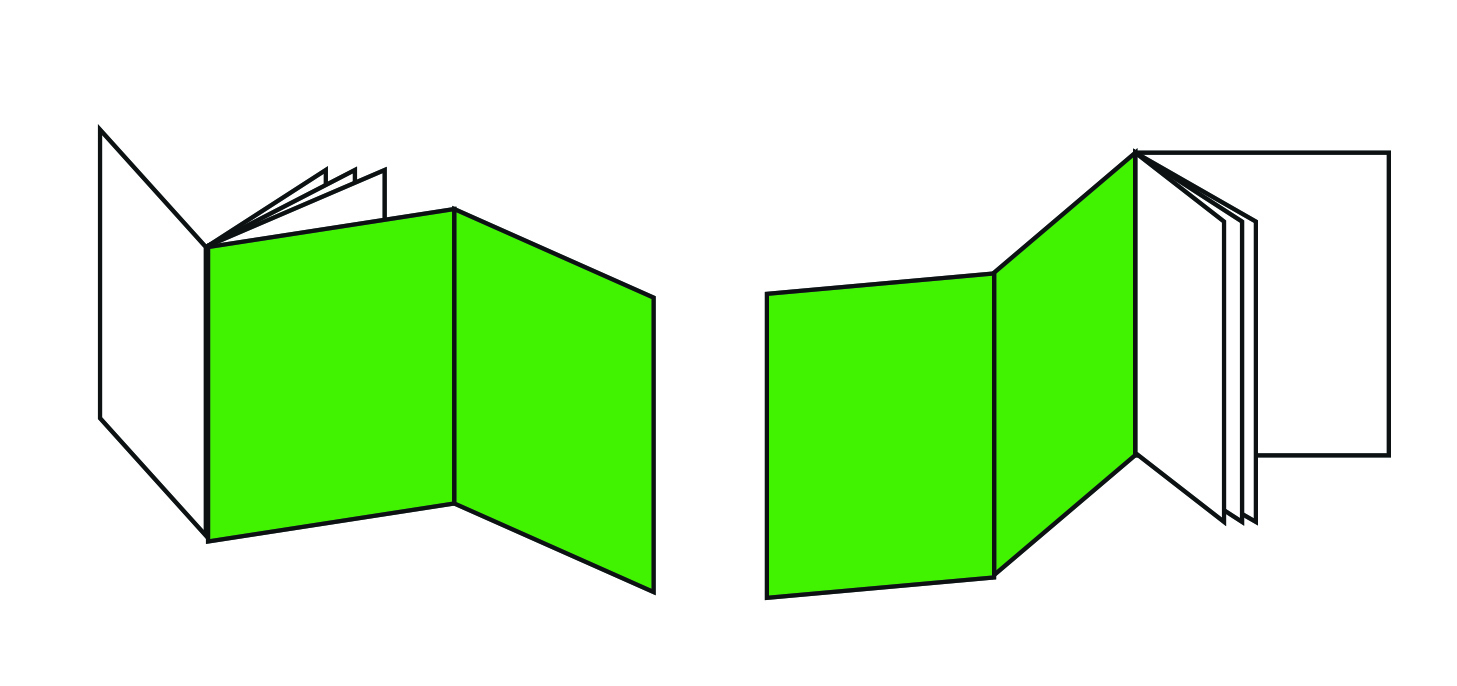

8pp Internal Butterfly Gatefold

8pp Internal Butterfly Gatefold

Live matter & type safety: Allow 10mm from trim and 13mm from bleed

Double gutter image: it is the file creator’s responsibility to include double gutter image allowance, if required. Neither Condé Nast nor our repro house nor our printer will apply double gutter image. As a recommendation only: no type should appear within 7mm either side of the gutter on a spread. If other important elements run through the gutter on a spread the middle of the spread should have a duplication of 7mm contained within the trim areas.

Important note on how to supply the files
Please ensure that four files are supplied as below (excluding 3mm bleed all round):
PDF 1 – OUTER FIRST DPS
W 210mm + 200mm x H 276mm
PDF 2 – INNER SECOND DPS*
W 200mm + 210mm x H 276mm
PDF 3 – INNER THIRD DPS*
W 210mm + 200mm x H 276mm
PDF 4 – OUTER FOURTH DPS
W 200mm + 210mm x H 276mm

*PDF 2 + PDF 3 to contain the INNER 4pp of the 8pp Butterfly Gatefold.

  • PDF 1 - OUTER FIRST DPS

    Trim: W 410mm x H 276mm

    Bleed: W 416mm x H 282mm 3mm all round

    Type: W 390mm x H 256mm

  • Must be supplied as one file
  • PDF 2 - INNER SECOND DPS

    Trim: W 410mm x H 276mm

    Bleed: W 416mm x H 282mm 3mm all round

    Type: W 390mm x H 256mm

  • Must be supplied as one file
  • PDF 3 - INNER THIRD DPS

    Trim: W 410mm x H 276mm

    Bleed: W 416mm x H 282mm 3mm all round

    Type: W 390mm x H 256mm

  • Must be supplied as one file
  • PDF 4 - OUTER FOURTH DPS

    Trim: W 410mm x H 276mm

    Bleed: W 416mm x H 282mm 3mm all round

    Type: W 390mm x H 256mm

  • Must be supplied as one file
